Histogrammy is a hdr historgam viewer for lightwave (master plugin since version 2.0).Version 3 is a completle rewrite, featuring some really nice features
render2imagefp works similar to the render to image function isnde lw, except this function provieds hdr / fp support

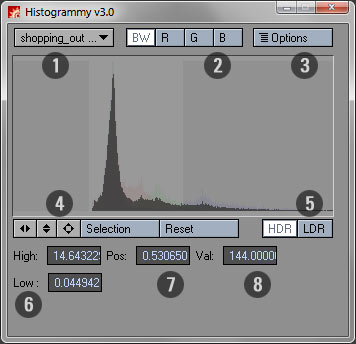

Interface Overview

Select Image to examine
Channel Selection (curretnly BW RGB)
Popup Menue for QUickhisto Autoupdate and Recalc Zoom)
Main View, Use Let Mouse to select a range / position,
Dark grey values are below 0 and above 1.0
Buttons for
  Horizontal Zoom
  Vertical Zoom
  Drag Button for horizontal movement
  Zoom to Selection (still needs some improvements)
  Reset view
Minimum and maximum pixel value
Current position inside the histogram
Amount of pixels at the current position


Changes made inside the image editor (contrast brightness etc, will automatical affect the histogram)

Recalc Zoom
Recalculates the histogramm according to the zoom level to prevent stairstepping (to give some fp precisson to the world of histograms)

To avoid large delays with large image, quickhisto uses only a limited amount of samples of the image, resulting in an incorrect, but imho close aproximation of the image.
This function is activated by default when Autoupdate ot recalc zoom is used

Render2Imagefp edition has been improved for the 9.2 usage, and is multible times faster
Please notice, histogrammy is for 8.5 and above (please download apropriate file)
